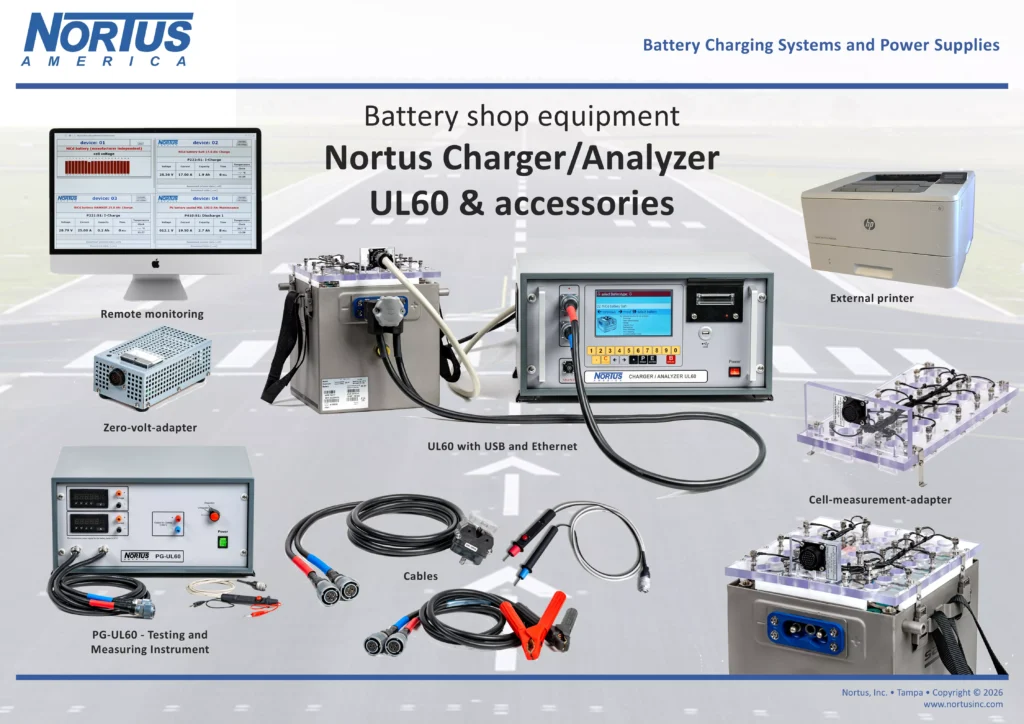

UL60 - Aircraft Battery Charger & Analyzer
Your Best Choice for Aviation Battery Maintenance Charge. Analyze. Fly.
Key Features & Benefits of the UL60 Battery Charger
- Full Automation: Fully automated battery maintenance and testing—no manual intervention required.
- Standalone Operation: Fully independent system with built-in automation—no external PC or software required.
- Flexible Charging, Discharging & Capacity Testing: Supports pre-configured fully automated charging programs from battery manufacturers or allows individual operations.
- Lightweight & Compact: Only 32kg for easy handling.
- Automated & Network-Enabled: Ethernet & USB, remote monitoring, file transfer, internal and external printer support.
- NSN: 6625-12-397-1233 (UL60)
Comprehensive Capabilities & Innovations
Fully Automated Battery Maintenance & Testing
True Standalone Operation
UL60 is a completely self-sufficient system that requires no external PC or additional software. All automation and data analysis functions are built directly into the device, eliminating reliance on third-party programs or software updates. This ensures full data security, protecting against network vulnerabilities and viruses. Competing solutions often require external software for advanced features, making them dependent on additional costs and potential system compatibility issues.
Automated & Customizable Charging Programs
The UL60 supports both pre-configured fully automated charging programs from battery manufacturers and customizable individual operations. Users can effortlessly select standard programs or create their own charging sequences tailored to specific needs.
The “Program Editor” is a separate PC-based software tool that enables users to create fully automated tailor-made battery treatment programs. Once created, these programs can be transferred to the UL60, where they run independently without requiring a connected PC during operation. This provides maximum flexibility for users while maintaining the UL60’s standalone functionality.
Advanced Networking & Remote Monitoring
The UL60 is equipped with industry-leading network capabilities. It features standard Ethernet connectivity, allowing remote monitoring of UL60 display via an Internet browser. Measurement results can be transmitted as files (RTF, CSV) and printed directly using a standard laser printer. Additionally, the UL60 is the only device in its class with an integrated dot matrix printer for fully independent stand-alone operation. This ensures complete documentation without the need for an external PC.
Another key feature is the ‘Break’ function via remote monitoring, giving users maximum control over battery testing and charging processes. Whether in a centralized maintenance facility or in the field, the UL60 guarantees seamless data access and operational efficiency.
The “Program Editor” is a separate PC-based software tool that enables users to create fully automated tailor-made battery treatment programs. Once created, these programs can be transferred to the UL60, where they run independently without requiring a connected PC during operation. This provides maximum flexibility for users while maintaining the UL60’s standalone functionality.
Key Figures and Data of the UL60 Battery Charger
| Feature | UL60 |
|---|---|
| Full automation | Stand-alone (all included, additional external HW & SW required) |
| Standalone operation | Yes without automation restrictions |
| Flexible charging & testing | Supports pre-configured & customizable battery programs; universal use for Aviation, Rail, Subway USV Batteries, Military & Defense; large selection of various charging cables |
| Max voltage / current | 40V / 60A |
| Advanced precision | <0.1% (Calibration via professional device PG-UL60 with 0.02% shunt & defined load) |
| Lightweight & compact | 32 kg |
| Automated & network-enabled | Ethernet, USB, Remote Monitoring, File Transfer (no proprietary network connecting external HW & SW required) |
| NSN (NATO Stock Number) | 6625-12-397-1233 |
Who Uses the UL60 Battery Charger?
UL60 is trusted by leading industries worldwide
Aviation
Airlines and MROs maintaining NiCd and Lead-Acid aircraft batteries
Rail & Industry
Maintenance for railway and subway backup batteries, UPS battery testing and diagnostics
Military & Defense
Fleet management and mission-critical battery applications
What Customers Say
“Among the few.”
“Tailored solutions, seamless collaboration.”
“Service you can rely on.”
Trusted by Aviation, Military And Maintenance Professionals Worldwide – Experience The Power Of UL60 Today!
Did you know?
The UL60 is the only truly flexible and universal charging and maintenance device on the market. Originally designed for aviation, it’s also used for UPS batteries in trains, fleets, and military applications, as well as lithium battery maintenance.

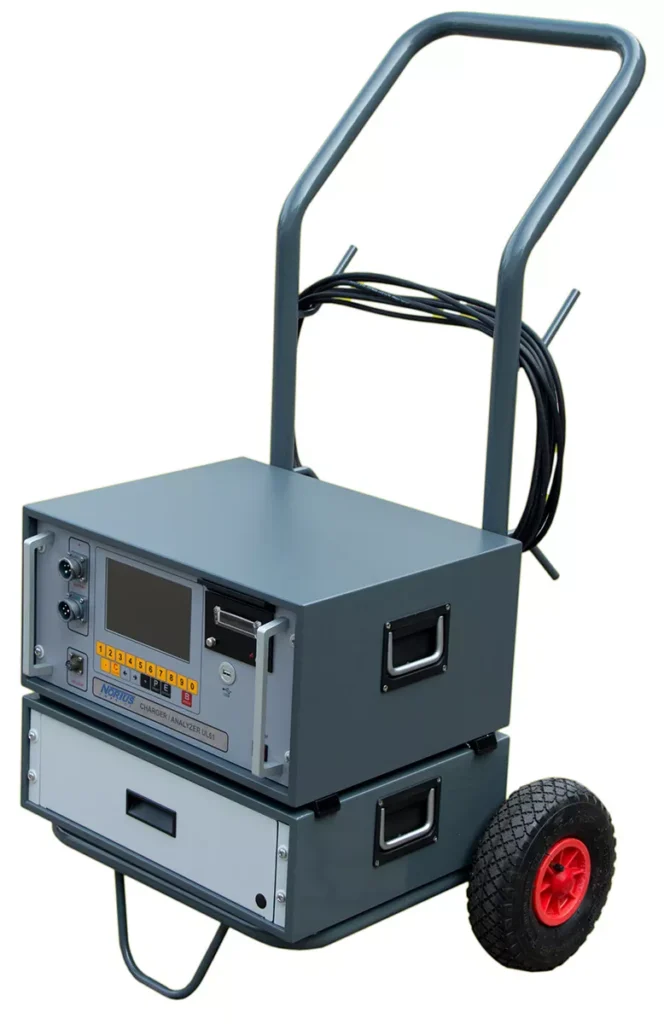

For railway operators, the UL61 offers 106V/16A, is fully mobile, and enables in-train battery testing up to 200A—without removal.
